| Product name: | Fiber patch cord | Cable color: | Aqua or customized |
|---|---|---|---|
| length: | 1m,2m,3m or customized | Cable Dimension: | 0.9mm, 2.0mm,3.0mm |
| Connector: | LC/UPC- LC/UPC | Model: | Mutil Model |
| wavelength: | 1310nm or 1550nm | Cable type: | G652D, G657A1,OM3 |
| Επισημαίνω: | OM3 Aqua Fiber Optic Patch Cords,0.9mm Fiber Optic Patch Cords,0.9mm OM3 Optic Patch Cords |
||
OM3 Aqua green LC UPC Mutilmode Duplex 3.0mm Fiber Optic Patch Cord
Feature:
Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic FerrulesApplications
Specifications:
| Specification: | |
| 1 | Connector Type: SC-SC |
| 2 | Mode: single mode |
| 3 | Polishing: PC |
| 4 | Insertion Loss: ≤0.2 dB |
| 5 | Return Loss: ≥52dB |
| 6 | Exchangeability: ≤0 |
| 7 | Repeatability: ≤0.2dB/1000times |
| 8 | Operation Wavelenghth: 850nm,1310nm,1550nm |
| 9 | Operating Temperature: -30 °C +75 °C |
| 10 | Storage Temperature: 40 °C ~ +85 °C |
| 11 | Cable OD: 3.0mm/2.0mm |
| 12 | Cable Material: OFNR,LDZH&Polarization maintaining |
| 13 | Mode: 9/125 |
| 14 | Fiber Cable Type: PVC 3.0mm |
| 15 | CE/Rohs/FCC: yes |
Technical Parameters
| Connector type | FC,SC,LC,ST,MU,E2000,D4,DIN | |||
| Fiber mode | SM | MM | ||
| End face | PC | UPC | APC | PC |
| IL(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| RL(dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Other model | MT-RJ,MPO | |||
| IL(dB) | ≤0.7 | / | ≤0.7 | ≤0.5 |
| RL(dB) | ≥30 | / | ≥50 | ≥25 |
(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3) Optical Test. Our products comply with IEC and ITU standards
(4) At least 30% spot test by Quality Assurance Department after the products finished.

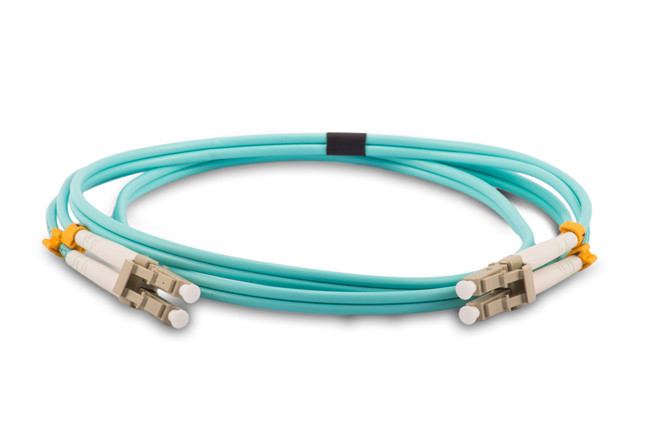

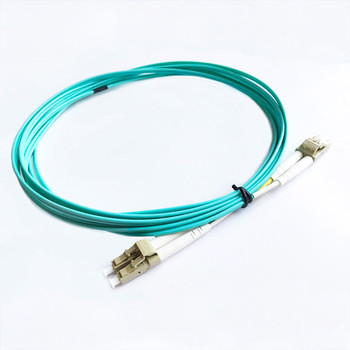

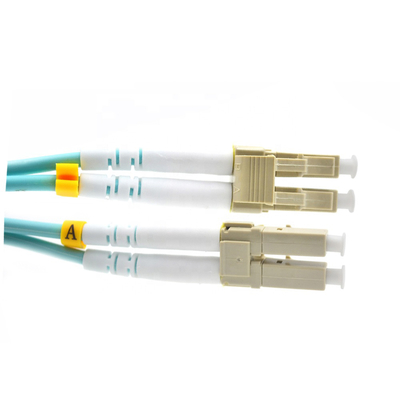

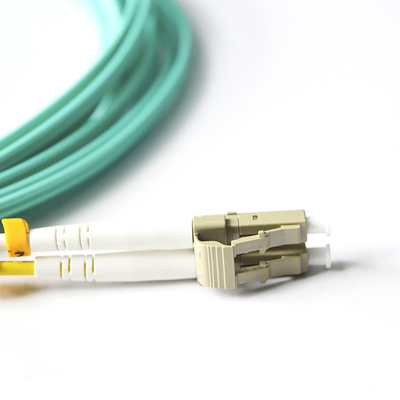

Product picture
