| Model Number:: | SFP+-10G-DAC | Type:: | HP Compatible JD096C SFP+-10G-DAC-AWG30-PASSIVE Copper |
|---|---|---|---|
| Cable Length:: | 1.5M AWG30 Passive DAC | Application:: | Data Center |
| Connector Type:: | SFP+ to SFP+ Direct Attach Copper Cable | Certification:: | CE/ROHS/ISO9001 |
| Επισημαίνω: | DAC AWG30 AOC,1.5M AWG30 Passive DAC AOC,HP Compatible 1.5M AOC |
||

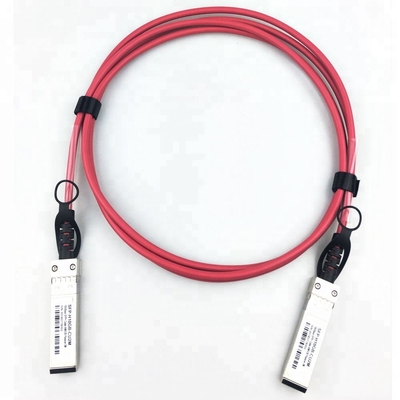

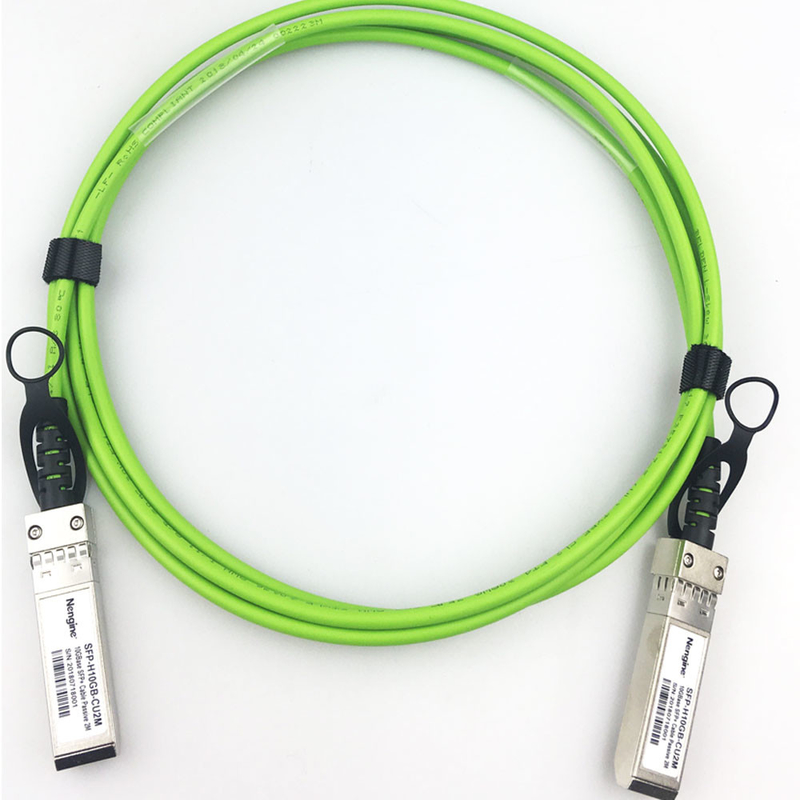

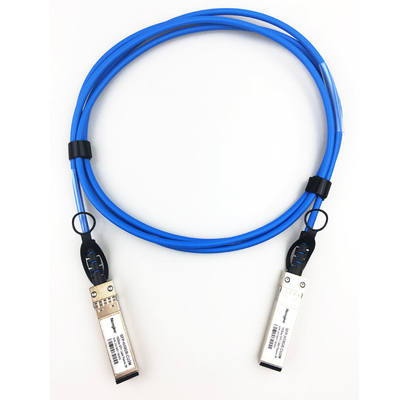

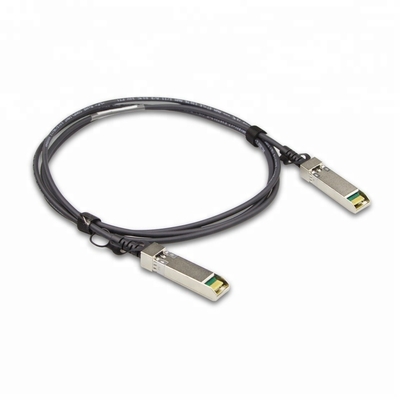

HP Compatible 1.5M AWG30 Passive DAC AWG30 AOC
HP Compatible JD096C SFP+-10G-DAC-AWG30-PASSIVE Copper Cable with Length 1.5M Color Cable
10G Copper SFP + DAC Direct Attach Passive Cables are suitable for very short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. SFP+ cables offers a low cost SFP+ solution. SFP+ directly attached twinax cable assemblies supports 10 Gigabit Ethernet, 10 Fibre Channel, and other industry standards.
Feature
* Support for multi-gigabit data rates up to 10.5Gbps
* Data rates backward compatible to 1Gbps
* for 1x, 2x, 4x and 8x Fibre Channel data rates
* Hot-pluggable SFP 20PIN footprint
* I/O Connector designed for high speed differential signal applications
* Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance
* Low Power Consumption < 0.5W
* Power Supply :+3.3V
* Temperature Range: 0~ 70 °C
Applications
* High capacity I/O Storage Area Networks
* Network Attached Storage
* Storage Servers
* Switched fabric I/O
* Data center cabling infrastructure
* High density connections between networking equipment
