| Item: | SC / UPC Adapter | Color: | Blue or Customsized |
|---|---|---|---|
| Structure: | With flange and metal clip | Test: | 100% |
| Materials: | Flame retardance Plastic | Ferrule material: | Ceramic |
| Επισημαίνω: | APC Fiber Optic Receptacle,Singlemode APC Receptacle,Ceramic Ferrule APC Receptacle |
||

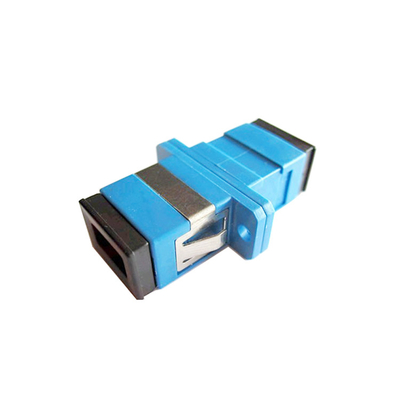

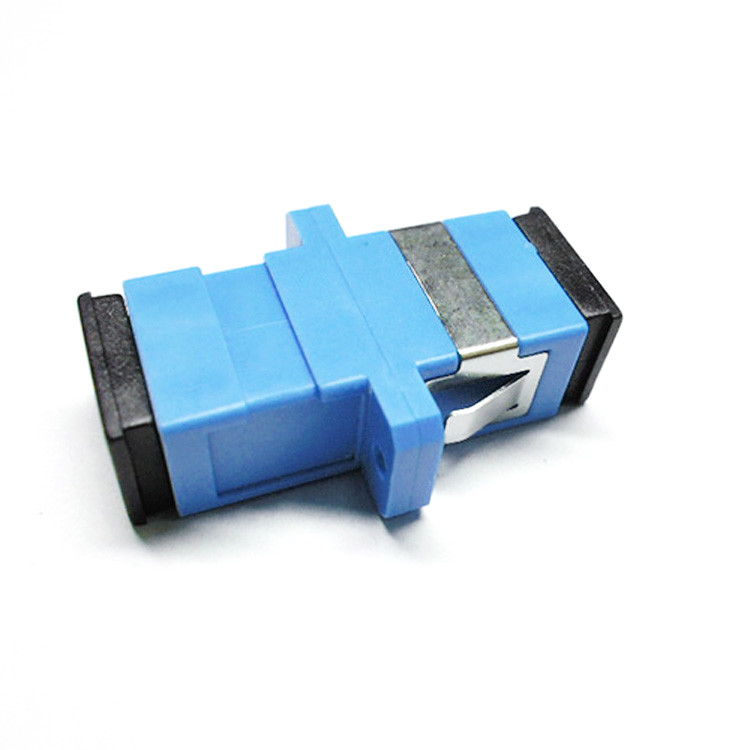

Ceramic Ferrule Singlemode APC Fiber Optic Receptacle
SC / UPC Fiber Optic Adapter, optical fiber coupler ,Singlemode Simplex with Flage and Metal clip
Description:
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.Fiber optic adapter is used for the connection and coupling between fiber active connectors.Choose proper type according to the splice of optical fiber active connector. Good agglomerati‐on technic to ensure the best quality, high intensity and stability.
SC mode used pluggable tight locking structure
Features:
FC mode used matal thread connecting strructure
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
APC,UPC optional
Simplex / Duplex
Application:
Fiber optic communication network
Optical broadband process network
Optical instrumentation network
Telecommunication Networks
Optic Local Area Network
Adapter docking
Equipment Test
CATV System
Specification:
| Project | Values | ||
| Reference standard | IEC61754-4,IEC61300-3-33 YD/T 1272.3-2005 |
||
| Insertion loss | ≤0.3dB | ||
| IL Change absolute value |
Low temperature | Temperature:-40℃ Duration:168h Temperature Change rate:1℃/min |
≤0.2dB |
| Hot and humid | Temperature:-40℃ Humidity:90%~95% Duration:168h Temperature Change rate:1℃/min |
≤0.2dB | |
| Vibration | Vibration direction:X,Y,Z Vibration time:2hours/direction Vibration amplitude:0.75mm Vibration frequency:10`55Hz |
≤0.2dB | |
| Drop | Impact height:1m Optical cable length:2.25m Impact times:5 |
≤0.2dB | |
| Temperature cycle | Temperature:-40℃to+85℃ Ultimate temperature duration:0.5h Temperature Change rate:1℃/min Cycle times:21 |
≤0.2dB | |
| Repeatability | Insertion pell times:10 | ≤0.2dB | |
| Mechanical durability (500cycles) |
Insertion pell times:500 | ≤0.2dB | |
| Tensile strength of coupling mechanism |
68.6N/10 minute | ≤0.2dB | |
| Flame resistance | UL94-V0 | ||
| Pull-out force | ≤19.6N | ||
| work temperature | -25℃～75℃ | ||
| storage temperature | -40℃～80℃ | ||
Structure:
① Flange
② Flange welded components
③ Dust caps
④ sleeve
⑤ Inter spindle
⑥ Decorative button

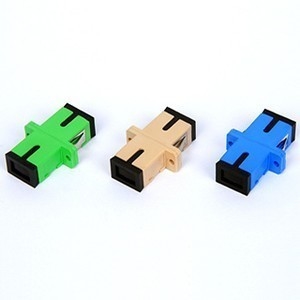

Pictures and Drawing:
