| Item: | ST Simplex adapter | Cap Color: | Yellow |
|---|---|---|---|
| Shape: | Round Type | Test: | 100% |
| Materials: | Zinc / Copper alloy | Type: | Simplex or Duplex |
| Fiber type: | OM1 OM2 OM3 OM4 | Cap Shape: | Round or Square |
| Επισημαίνω: | Zinc alloy Fiber Optic Receptacle,Multimode ST Simplex adapter,Multimode Simplex adapter |
||

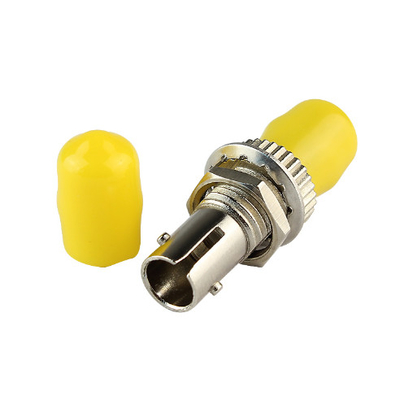

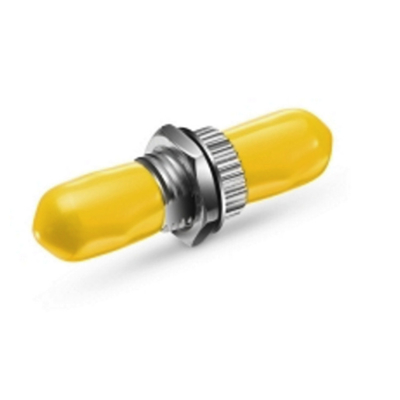

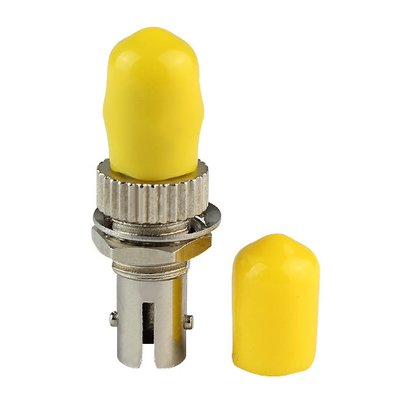

Multimode Round Type ST Zinc alloy Fiber Optic Receptacle
ST Simplex Mutimode Round Type Fiber Optic Adapter , Zinc alloy ST optic fiber coupler Yellow color
Description:
Fiber optic adapter (also fiber optical coupler) is available in single mode UPC and multimode SPC to sastify to connect single mode or multimode patch cable.
ST fiber optic adapters are all threaded type, It's a small device designed to terminate or link the fiber optic cables or fiber optic connectors between a fiber optic lines
Features:
Telcordia,ANSI,TIA/EIA standard compliance
High precision alignment
Good durability and exchangeability
Various Connector Type Available
High temperature stability
Low Insertion Loss and return loss
Application:
Telecommunication Networks
Local Area Network
FTTH and FTTx
Fiber Optic Sensors
Testing Instruments
CATV System
Specification:
| Modle Number | ST SX Round Adapter |
| Inserion Loss | ≤0.3dB |
| Durability | >1000 times |
| Operating Temp | -40~70°C |
| Material | Metal |
| Application | FTTx,LAN,CATV,Telecom |
| Certification | RoHS,SGS,CE |
| Connector Type | ST-ST |
| Polish Type | UPC;APC |
| Fiber Mode | Singlemode; Multimode; OM3; OM4;OM5 |
| Color | SM:Red / Black MM:Yellow |
Drawing and Pictures:
