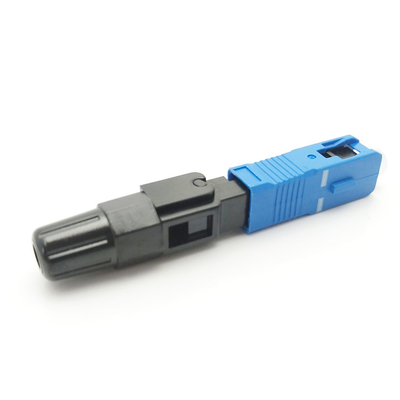

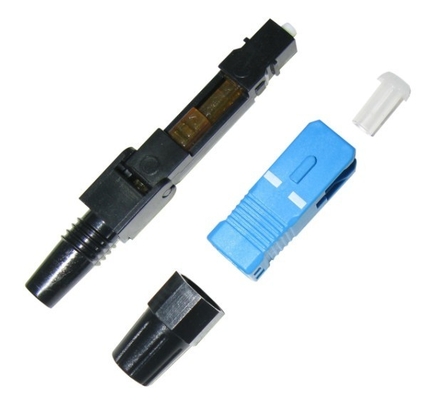

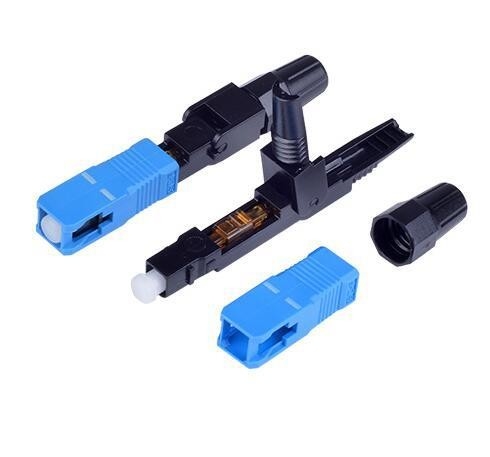

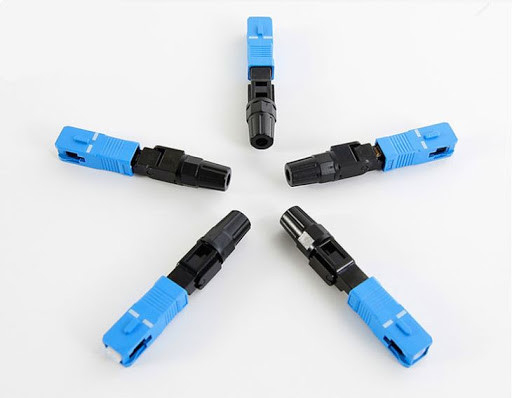

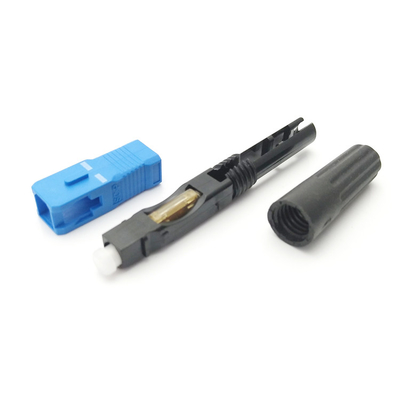

| Product name: | Fast connectors | Color: | Blue |
|---|---|---|---|
| Connector: | SC UPC | Length: | 55MM |
| Insertion cycle: | more than 1000 times | Application: | Telecom networks FTTX CATV |
| Επισημαίνω: | Sc Upc Fast Connectors Assembly,3.0mm Fast Connectors Assembly,3.0mm Ftth Fast Connectors Assembly |
||
Optical Characteristics
| Category | Specification | |
| Aoolicable for | Drop cable.Indoor cable | |
| Fiber mode | Single mode or Multi mode | |
| Operation time | S | About 50(no fiber cut) |
| Insertion Loss | dB | ≤0.5 |
| Insertion Loss Typical value | dB | 0.3 |
| Return Loss | dB | ≥50 |
| Fastening strength of naked fiber | N | ≥5 |
| Tensile strength | N | ≥50 |
| Reusable | Time | ≥10 times |
| Operating Temperature | ℃ | -40~+85 |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 |
Application:
1). CATV
2). Active device termination
3). Telecommunication networks
4). Metro
5). Local Area Networks (LANs)
6). Data processing networks
7). Test equipment
8). Premise installation
9). Wide Area Networks(WANs)
