| Item: | Auto shutter adapter | Color: | Blue / Green / Customized |
|---|---|---|---|
| Structure: | Flange or Flangeless | Housing Material: | Metal |
| Ferrule material: | Ceramic | Cap color: | Black / Blue / Green / Customiaed |
| Type: | UPC / APC | Operating temperature: | -40℃~85℃ |
| Επισημαίνω: | SC auto shutter Adaptor,UPC APC SC Adaptor,Flange auto shutter Adaptor |
||

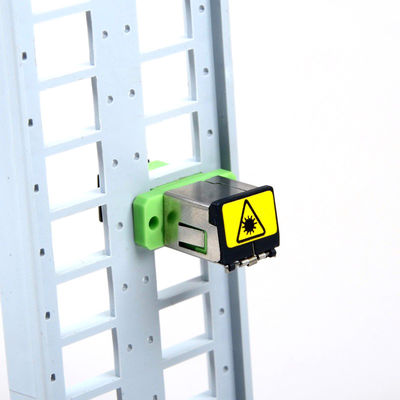

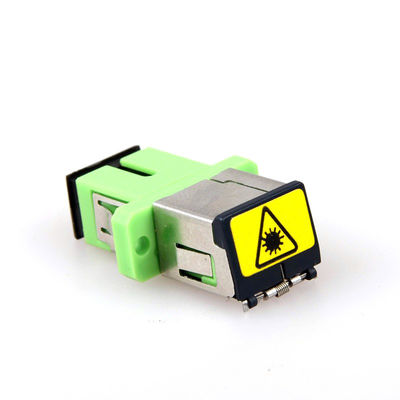

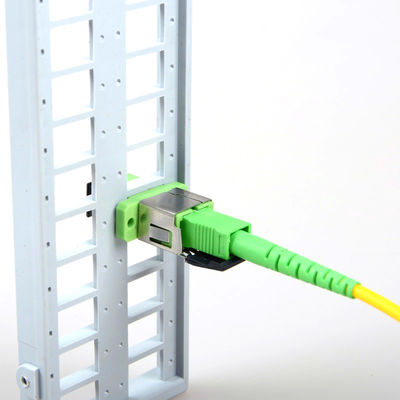

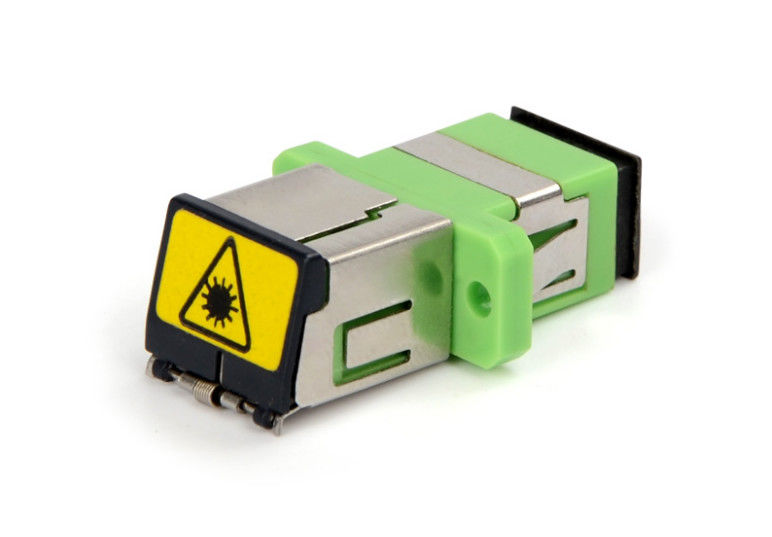

Metal Housing Flange UPC APC SC Auto Shutter Adaptor
Metal hosing SC auto shutter Adaptor with Laser marking Flange Green fiber optical Coupler
Description:
Fiber optic adapter is used for the connection and coupling between fiber active connectors.Our fiber optic adapter have at least 1000 times durability, because we introduce advanced production technolege and 100% NEW raw material, well control fiber optic adapter's quality.
There are multimode and singlemode couplers. Multimode couplers are used for large data transfers at shorter distances. Singlemode couplers are used for longer distances where less data is transferred. Singlemode couplers are typically chosen for networking equipment in different offices and are used to network equipment within the same data centre backbone.
Features:
Housing Metal
IL≤0.2dB,RL≥60dB
Good compatibility High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC, APC, UPC optional
Simplex / Duplex optional
Application:
1. CATV system
2. Optical fiber communication systems
3. Optical fiber data transmission
4. Building network access
5. Cabling system, ODF
6. FTTX and FTTH applications
7. Test equipment
Specification:
1. Low insertion loss and high return loss
2. High precision of mechanical dimensions
3. Great repeatability
4. High temperature stability
5. High interchangeability
6. All parts compliant with ROHS
7. Ceramic sleeves
| Item | LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc | ||
| Type | Multi-Mode | Single-Mode | |
| Light Characteristic | Operating Wavelength | 850nm& 1300nm | 1310nm & 1550nm |
| Typical Insertion Loss | 0.2dB & 0.2dB | 0.2dB & 0.2dB | |
| Mechanical Testing | Repeatability | ≤ 0.2dB | |
| Exchange | ≤ 0.2dB | ||
| Durability | > 1000 (Times) | ||
| Temperature | Storage Temperature | 25 ~+85 | |
| Operating Temperature | 25 ~+85 | ||
| Length, Color, Out-Diameter, Fiber counts | According to the customers' requirement | ||
Packing and Shipment Reference:
| Packing | 50 pcs / plastic box ,3000 pcs /box |
| Measurement | 46.5*38.5*23 CM |
| G.W. | 15kgs/carton |
| Shipment |
By Express:Fedex / UPS / TNT/ DHL / SF ect By sea By Air |
