| Model No.: | Dual fiber cwdm oadm add/drop LGX module | Wavelength: | 1270~1610nm |
|---|---|---|---|
| Applications: | CWDM System/PON Networks/CATV | Connector: | SC |
| Operating temperature: | -40 to 85 degree | Πιστοποίηση: | RoHS, ISO9001, FCC, CE |
| Επισημαίνω: | Dual Fiber CWDM OADM,CWDM OADM LGX Module,Dual Fiber LGX Module |
||

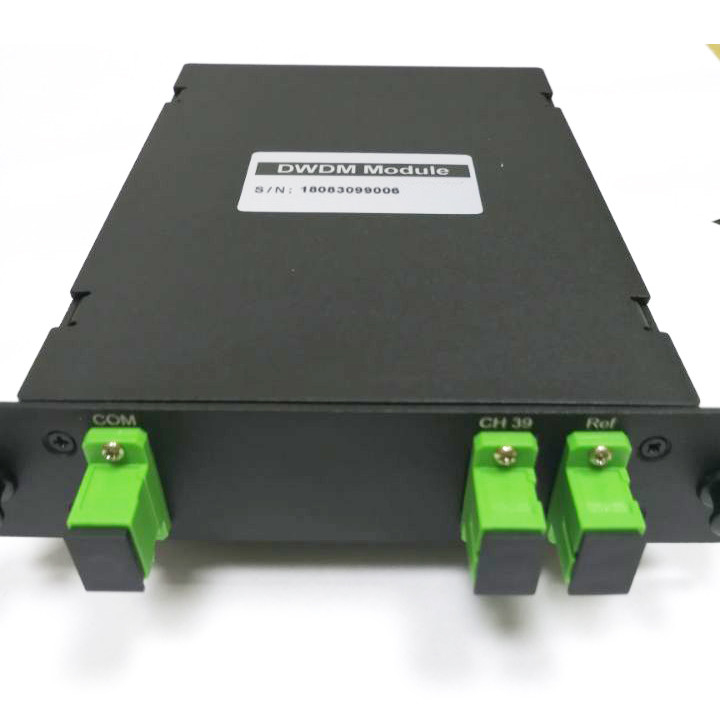

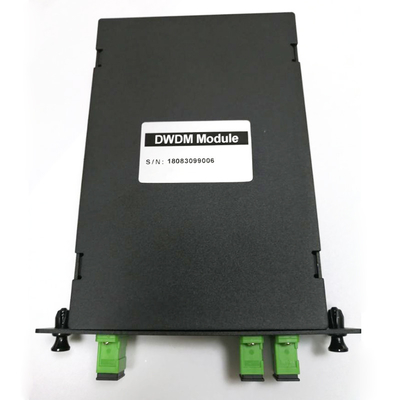

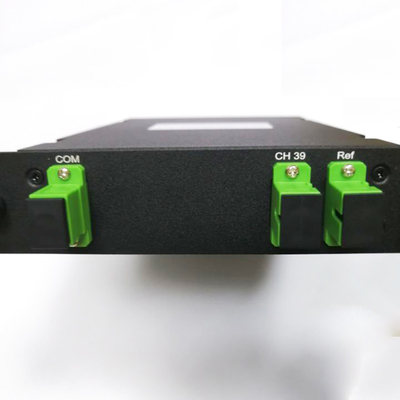

PON Networks Dual Fiber CWDM OADM LGX Module
Dual fiber CWDM OADM add/drop 2-in/2-out 1270-1610nm wavelength LGX Module
Description
Features
• Wide Operating Wavelength: 1270nm ~ 1610nm
• Operating Temperature: 0℃ to 70℃
Applications
• CWDM System
• PON Networks
• CATV Links
Compliance
• Telcordia GR-1209-CORE
• Telcordia GR-1221-CORE
• RoHS
Specification:
|
Parameter
|
4 Channel
|
8 Channel
|
16 Channel
|
18 Channel
|
|||||
|
Mux
|
Demux
|
Mux
|
Demux
|
Mux
|
Demux
|
Mux
|
Demux
|
||
|
Channel Wavelength(nm)
|
1270~1610/1271~1611
|
||||||||
|
Center wavelength Accuracy (nm)
|
±0.5
|
||||||||
|
Channel Spacing(nm)
|
20
|
||||||||
|
Channel Passband (@-0.5dB bandwidth (nm)
|
+/-7.5/+/-6.5
|
||||||||
|
Insertion Loss (dB)
|
≤1.5
|
≤2.5
|
≤3.5
|
≤3.5
|
|||||
|
Channel Uniformity (dB)
|
≤0.6
|
≤1.0
|
≤1.5
|
≤1.5
|
|||||
|
Channel Ripple (dB)
|
0.3
|
||||||||
|
Isolation(dB)
|
Adjacent
|
>30
|
|||||||
|
Non-adjacent
|
>40
|
||||||||
|
Insertion Loss(dB)
|
Express with filter
|
>30
|
|||||||
|
Express without filter
|
>12
|
||||||||
|
Inertion Loss Temperature Sensitivity (dB/℃)
|
<0.005
|
||||||||
|
Wavelength Temperature Shifting (nm/℃)
|
<0.002
|
||||||||
|
Polarization Dependent Loss(dB)
|
<0.1
|
||||||||
|
Polarization Mode Dispersion(ps)
|
<0.1
|
||||||||
|
Directivity (dB)
|
＞50
|
||||||||
|
Return Loss(dB)
|
＞45
|
||||||||
|
Maximum Power Handling (mW)
|
300
|
||||||||
|
Opterating Temperature (℃)
|
-40~+85
|
||||||||
|
Storage Temperature (℃)
|
-40~+85
|
||||||||
|
Package dimension (mm)(LGX box)
|
L155.5xW102(129)xH29
|
||||||||
