| Model Type: | 19 inch plc splitter box | Package Type: | Rack Mount |
|---|---|---|---|
| Material: | Aluminum | Fiber Connector: | SC/LC/FC/ST |
| Operating Temperate: | -40~85°C | Application: | FTTH FTTB FTTX Network |
| Επισημαίνω: | 19 inch PLC Fiber Optic Splitter,1x8 Port PLC Splitter,Rack Mounted PLC Splitter |
||
1x8 Port Rack Mounted 19 Inch PLC Fiber Optic Splitter

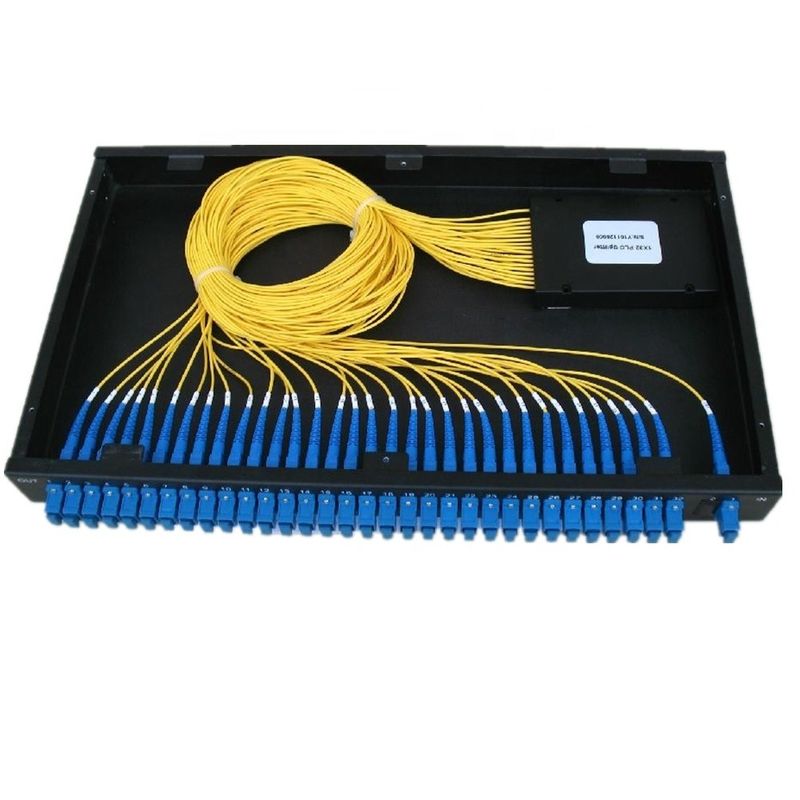

1*8 1*16 1*32 Port Rack mounted fiber optical terminal box 19 inch PLC Splitter Box
Description:
Feature:
Main technique index:
Package:
Application:
Specification:
| Type | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 | |
| Item | |||||||||||||
| Insertion loss (dB) | MAX | 3.9 | 7.2 | 10.5 | 13.8 | 16.8 | 20.8 | 4.4 | 7.4 | 11 | 14.5 | 17.5 | 20.8 |
| Uniformity (dB) | MAX | 0.5 | 0.6 | 0.8 | 1 | 1.3 | 1.8 | 0.6 | 0.8 | 1 | 1.5 | 1.8 | 2 |
| PDL (dB) | MAX | 0.2 | 0.3 | 0.4 | 0.2 | 0.3 | 0.4 | ||||||
| Operating Wavelength (nm) | / | 1260~1650 | |||||||||||
| Return loss (dB) | MIN | 50(UPC),55(APC) | |||||||||||
| Directivity (dB) | MIN | 55 | |||||||||||
| Operating Temperature (°C) | / | -40°C~85 °C | |||||||||||
| Storage Temperature (°C) | / | -40°C~85 °C | |||||||||||
