| Cassette adapter port: | 1 MPO port & 12 SC Simplex or LC duplex | Apply port: | MPO / SC / LC |
|---|---|---|---|
| Height: | 3U | Material: | Aluminum/Cold-roll steel |
| Color: | Black / Gray / White | Dimension:: | 482.6*225*133.5mm |
| Max. capacity:: | 144 for SC, 288 for LC | Application: | 19inch 3U rack mounted |
| Επισημαίνω: | MPO Fiber Optic Rack Mount Enclosure,3U SC LC Rack Mount Enclosure,3U SC LC MPO Enclosure |
||

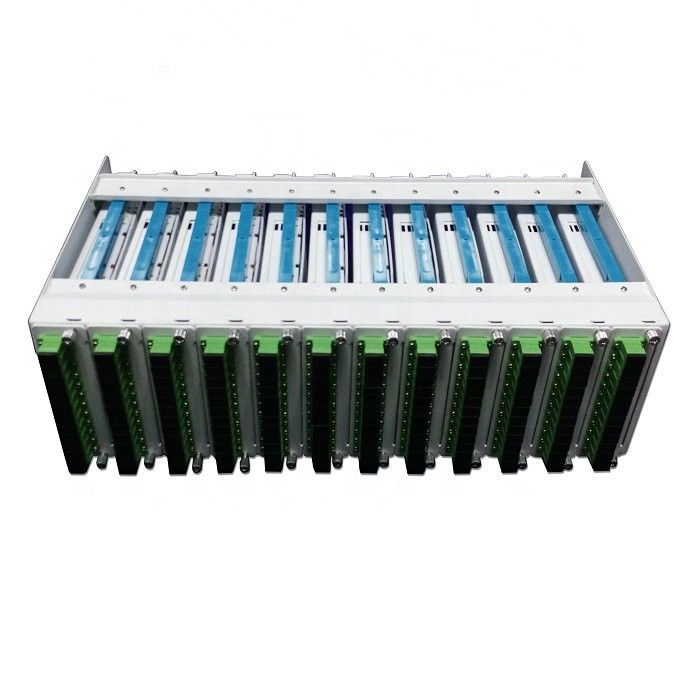

3U SC LC MPO Fiber Optic Rack Mount Enclosure
3U 19" Universal Subrack Frame With 12pcs MPO-SC MPO-LC Rack Mount Module Cassette
3U Subrack Model:CH-3U-12P-A
MPO cassettes Model:C-SCS-12C-A
This Subrack design to accommodate MPO terminals.Suitable for different kinds of equipment which is designed according to 19’’ cabinet.3U Subrack Can loaded with Max.12pcs MPO cassettes.Comply to ETSI standard.
Specifications:
(1) Material of cold rolled steel. 19" 3RU height rack mount.
(2) Sliding rail on 3U subrack for fixing 12pcs MPO cassette module, easy operation.
(3) Various adapter patch panel for:
144 Core with 12pcs 12ports SC Simplex adapter couplers
288 Core with 12pcs 12ports LC Duplex adapter couplers
(4) Suitable for ribbon and single fiber cable.
(5) For 19" or 23" standard optic distribution cabinets and fiber rack.
(6) Data center and network system, FTTX FTTH project.
| Model | Material | Height | Size | Capacity |
| CH-3U-12P-A | cold-roll steel | 3U | 482.6*225*133.5mm | 12pcs MPO cassette |
| C-SCS-12C-A | Aluminum | 3U | 225.5*130*35mm | 12pcs SC Simplex or 12pcs LC Duplex |
Fiber to the home FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Telecommunications subscriber loop
Standard size,light and reasonable structure
Manual Screws fixation,Easy for management and operation.
Compact design for space saving

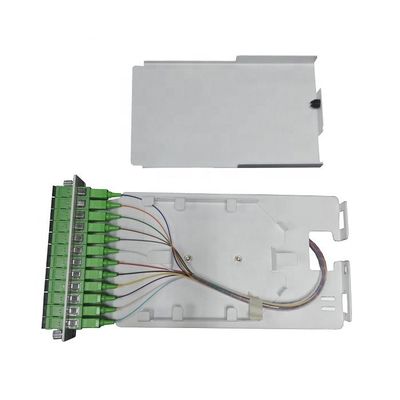

MPO cassettes:12cores for SC simplex adapters.24cores for LC duplex adapters.
Material:3U Subrack: cold-roll steel. / MPO cassettes:Aluminum.
Painting:
1. Electrostatic Powder anti-rust spraying,Black or Hoar color optional.
2. Other color according to customer’s demand.
Note:If customer no special requirement,we will spray hoar color.
Product Show:
