| Size: | L86xW86xD23mm | Material: | ABS |
|---|---|---|---|
| FTTH Socket connector:: | SC Simplex / LC Duplex | Pory: | 2 |
| Weight: | 47g | Color: | White |
| Packing: | 100 pieces/carton | Application:: | FTTH |
| Επισημαίνω: | FTTH Wall Mount Patch Panels,2 Core FTTH Patch Panels,86 Type Mini FTTH Patch Panels |
||

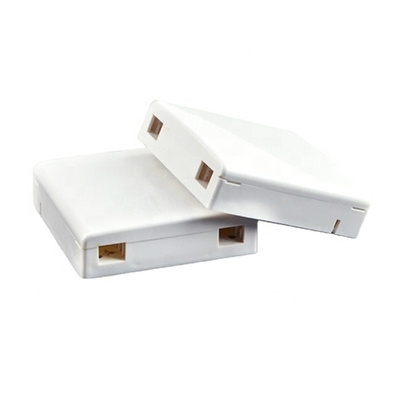

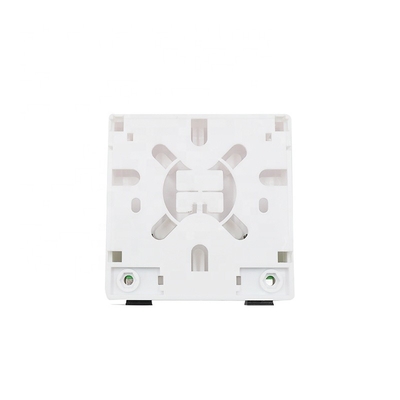

86 Type Mini 2 Core FTTH Wall Mount Patch PanelsTerminal Box
Indoor Wall Mounted 86 Type Mini 2 Core FTTH Fiber Optic Patch Panel Terminal Box
Description
The indoor 86mm type FTTH mini fiber optic faceplate employs a compact plug-in design, combines a modern design concept, adopts imported plastic, is of a graceful appearance and applicable for FTTH, FTTO and FTTD, etc., and allows easy use in different installation environments.
The clasp design of the cover has greatly reduced the installation strength. It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables. Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users, all SC, LC and SC/FC are usable. In addition, the big diameter wrapping post in the box protects radically in an omnibearing way the optical fiber in the box.
Features
Small size, light weight, use conveniently
ABS material, fireproof and dustproof
Radian appearance makes it slinky
Suitable for various modules and multimedia interfaces
Embedded chart and logo position make it easy to identity
Support MM or SM fiber connection
2 ports for SC simplex, LC duplex adapters
Detailed information
Very thin and matches with other A86 panels in homes and also meet the open or concealed cabling for optical cables
Used in FTTH indoor application, home or work area
Provide users with optical access or data access

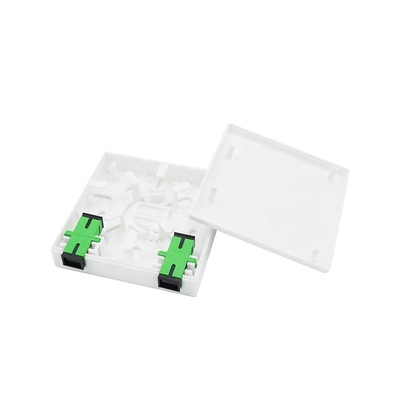

Suitable for 2 pcs SC adapters

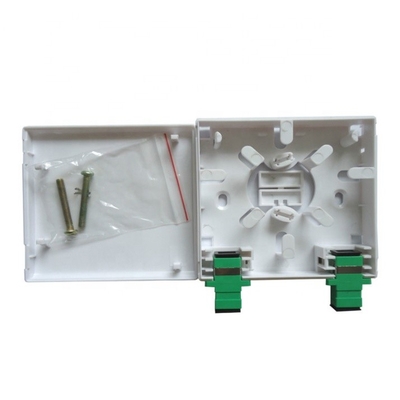

May store surplus fiber inside, easy for operation
A user end product to realize optical fiber to desktop solution.
It can be used in home or working area to accomplish double-core fiber access and port output.

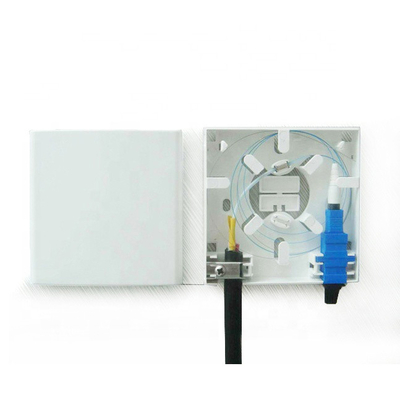

Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
Specification:
Material: ABS plastic

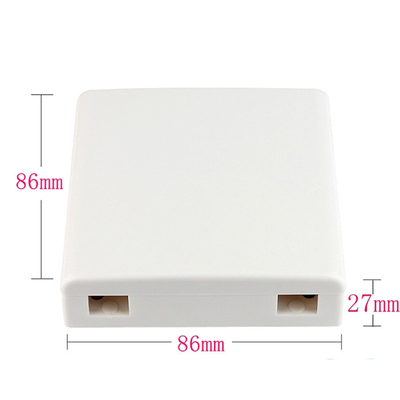

Size: 86*86mm*23mm, 47g
Application:
FTTH
Optical communication system
