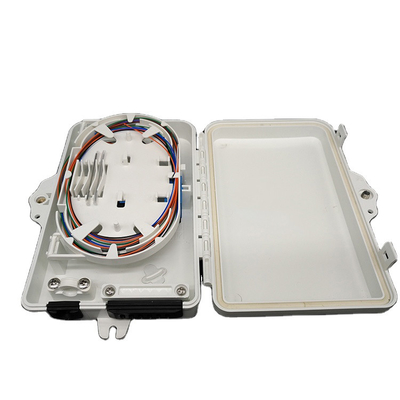

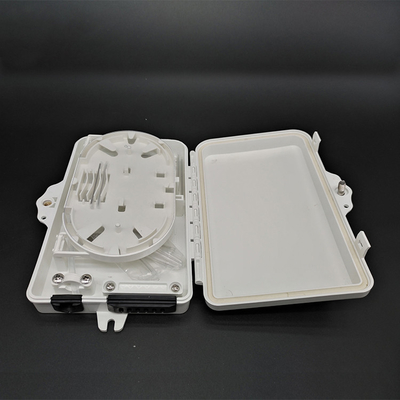

6 Port 12 Core FTTH FTB106C Fiber Optic Junction Box

6 Port 12 Core FTTH FTB106C Fiber Optic Junction Box

FTB106C 6Port 12 core Fiber optic Wall Mounted patch panel fiber cable access termination box

Description:

Fiber To The Home, FTTH is a transmission method for optical fiber communication. This box directly connect the fiber to

the subscriber's home (user desired place). The optical fiber communication mode and strategy is different with FTTN,

FTTC, HFC (Hybrid Fiber Coaxial) which are all depend on metal wires including twisted pair and coaxial cable.FTTH is

used as the last one kilometer information transmission.

Features:

• Wall-mounted and rack mounted application
• Self-clip design,easy to operate
• Suitable for SC, FC adapters max 4-6 cores
• Max capacity 4fibers
• Environmental Temperature:-25℃~40℃;
• Fiber to the Home (FTTH) home and outdoor use
• Drop cable 2*3.0mm figure-8 FRP LSZH and fast field installation connector install
• Rubber sealing circle for waterproof
• Can be use for un-cut cable go through the box

Specifications:

• Terminal box is made of high strength export engineering plastic ABS+PC, white color.
• Wall mount application, indoor or outdoor use

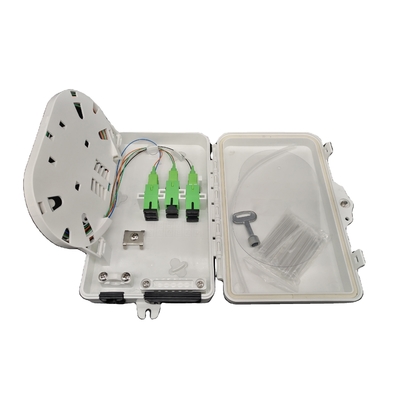

• Clip-self design, with a special plastic key to open, fast and easy to use.
• Waterproof with red circle rubber seal all round the box inside.

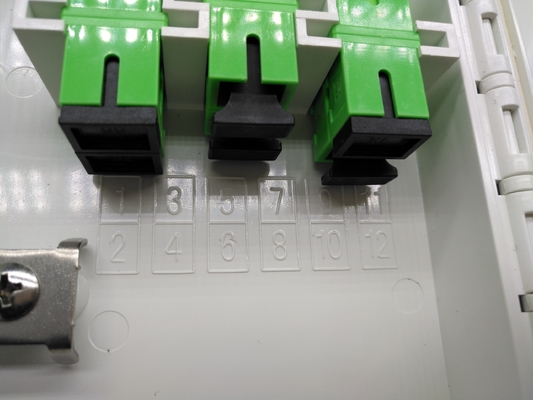

• Inside of the box, there is a adpater panel, which can hold 4pcs SC simplex adapters, 4pcs pigtails.

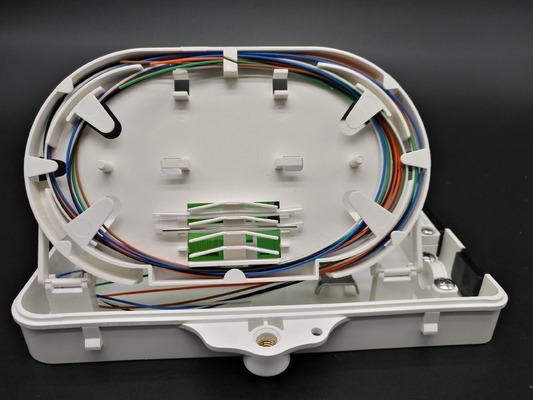

• 1x fiber tray have enough space for fiber optical cable routing and storage.
• There is a place to fix the steel tube which can use PLC splitter.

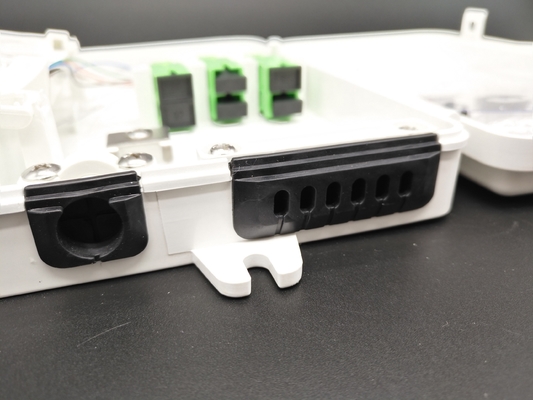

• Cable inports: 1ports for indoor or outdoor cable 7-10mm diameter.
• Cable outports: 4ports for FTTH drop cable 2x3.1mm or indoor or outdoor cable.
• All cable ports with rubber seal, it can prevent water in.
• IP65 protection class
• Fire retardant material if needed.
