| Max qty of splice tray: | 8 PCS | Max capacity: | 96 core |
|---|---|---|---|
| Dimensio: | 480*300*2U/3U/4U/6U | Supply adaptors: | SC/LC/ST |
| Material: | Cold rolling steel sheet | Capacity of splice try: | 12 SC-SX or 12 LC-DX |
| Επισημαίνω: | 96 core ODF Optical Distribution Frame,96 core ODF,96 core Optical Distribution Frame |
||

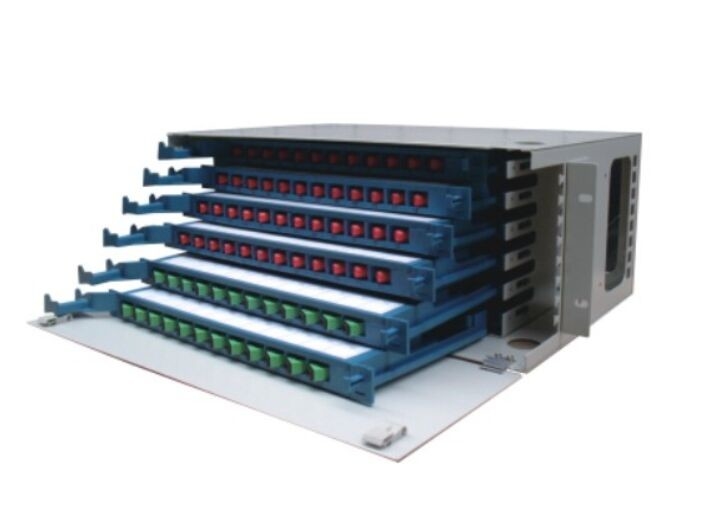

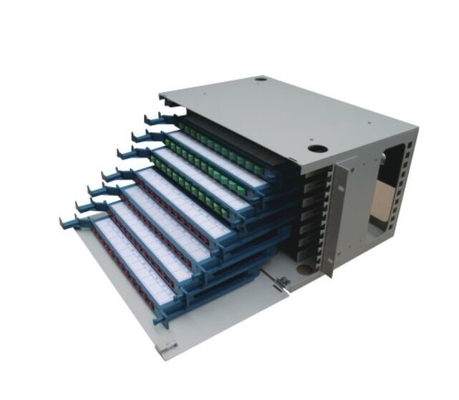

19'' Fiber ODF Unit Series Box GB-B-24/48/72/96 core
Information:
The standard 19 "installation method, flexible configuration
Splice marks and optical path marks are clear and complete, easy to maintenance and management
With sufficient optical storage space, ensure radius of curvature of cable & fiber;
Dimension :
| Model | Net size(mm) | Inner carton weight (kg) | Outer carton dimension(mm) | Outer carton weight(kg) | No. of units per carton (pcs) |
| GB-B-24 | 480*280*2U | 5.7 | 450*340*480 | 24.3 | 4 |
| GB-B-48 | 480*280*3U | 7.7 | 500*350*540 | 24.6 | 3 |
| GB-B-72 | 480*280*4U | 9.8 | 500*350*460 | 21.1 | 2 |
| GB-B-96 | 480*280*6U | 13.7 | 500*350*460 | 28.9 | 2 |

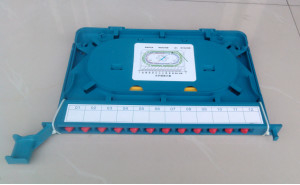

Welding &distribution module in integration
Material: ABS
Weight: 0.5kg
Plastic structure, legerity with perfect appearance, easy for installation of inlay, convenient to expand capacity, obliquity of adapter is 30°, which ensure the bend radius of patch cord and avoid laser burning eyes. Kinds of splicing and distribution mark,easy to make fusion and distribution record.
