| Model: | wall mount odf | Type: | Fiber Adapter & Connectors |
|---|---|---|---|
| Dimensio: | 1U,2U,3U,4U | Supply adaptors: | SC/LC/ST/FC |
| Material: | cold-rolling steel odf | Capacity of Cores: | 12 24 48 cores |
| Επισημαίνω: | ST LC Optical Fiber Distribution Frame,ST LC Fiber ODF,SC FC Fiber ODF |
||

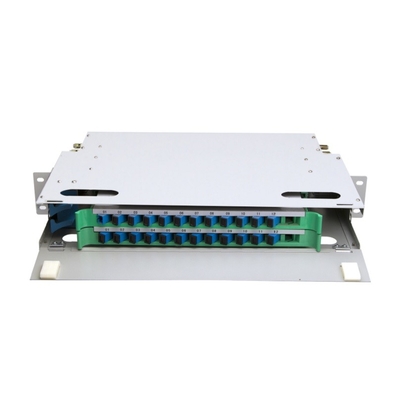

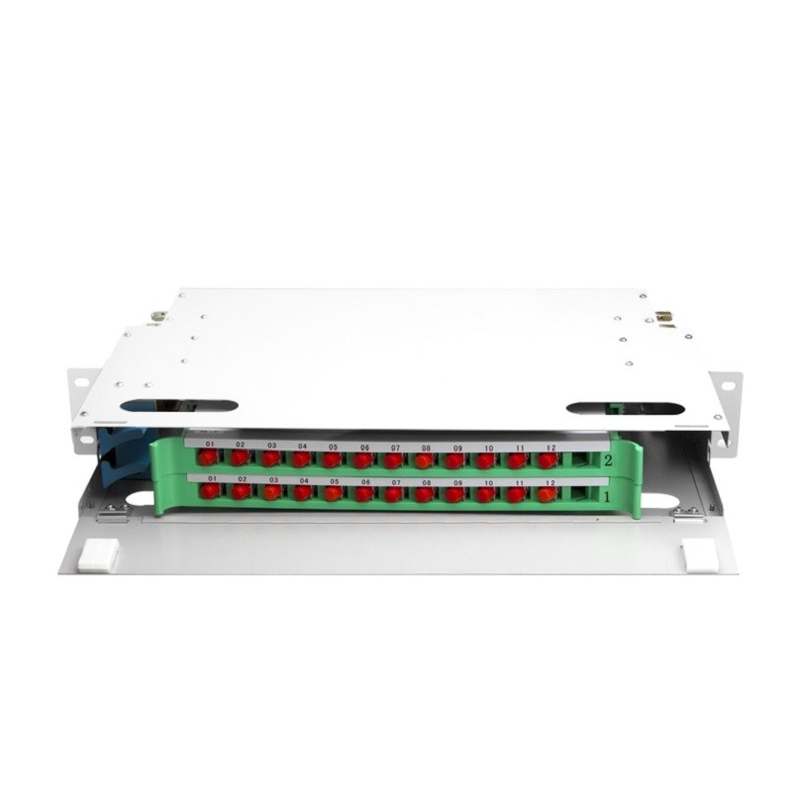

24 48 Port SC FC ST LC Optical Fiber Distribution Frame
24 48 port Outdoor Fiber Optic ODF/main Distribution Frame Patch Panel for SC FC ST LC Adapter
Information:
ODFwith pigtails and adapters contain one ODF, adapters and pigtails. Parts are shipped separately, The installer assembles the pigtails and adapters in the ODF on site. Boxes can be supplied to contain from 12 to 192 fibers. All ODFs are withdrawable and designed for mounting in 19” racks. They are equipped with splice holders and guiding for fibers. We can also supply you with other combinations on request.
1) Standard size, light weight and reasonable structure

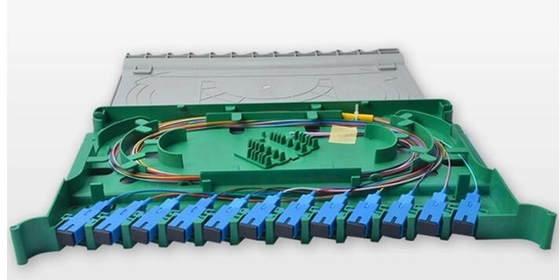

2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
Rack-mount Fiber Optic Distribution Frame
| Model | Core Count | Height | Dimension(cm) | Weight(kg) |
| ODF-R144 | 144 | 7U | 49x30.5x31.15 | 17.1 |
| ODF-R96 | 96 | 5U | 49x30.5x22.25 | 11 |
| ODF-R72 | 72 | 4U | 49x30.5x17.8 | 9 |
| ODF-R48 | 48 | 3U | 49x30.5x13.35 | 7 |
| ODF-R36 | 36 | 2U | 49x30.5x8.9 | 5.7 |
| ODF-R24 | 24 | 2U | 49x30.5x8.9 | 4.6 |
