| Item: | FC / APC or UPC Adapter | Cap Color: | Green / Yellow / Red / Black |
|---|---|---|---|
| Shape: | Rhombic Type | Test: | 100% |
| Materials: | Zinc / Copper alloy | Ferrule material: | Ceramic |
| Επισημαίνω: | Rhombic Fiber Optic Coupler,FC / APC UPC Coupler,Single Mode UPC Coupler |
||

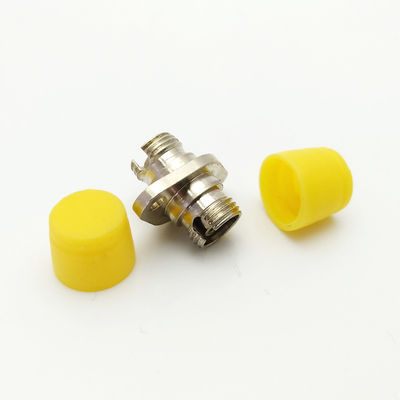

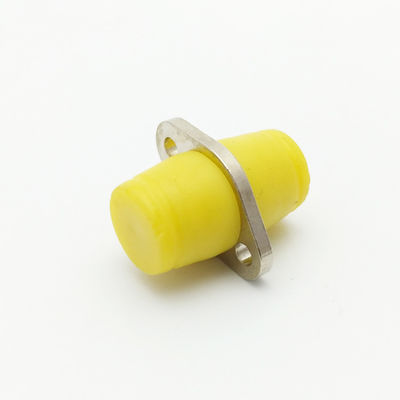

Single Mode FC / APC UPC Rhombic Fiber Optic Coupler
Rhombic Type FC/APC or UPC Fiber Optic Adapter ,100% test
Description:
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
FC fiber optic adapters are with metal housing, single-mode FC adapters are with zirconia sleeves, multi-mode FC adapters are with bronze sleeves.
Features:
FC mode used matal thread connecting strructure
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
APC,UPC optional
Simplex
Application:
Fiber optic communication network
Optical broadband process network
Optical instrumentation network
Telecommunication Networks
Optic Local Area Network
Adapter docking
Equipment Test
CATV System
Specification:
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, | MTRJ | E2000 | ||||||
| SM | MM | SM | MM | SM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
| Insertion Loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Durability | Time | ＞1000 | ＞1000 | ＞1000 | ||||||
| Operating Temperature | ℃ | -40~75 | -40~75 | -40~75 | ||||||
| Storage Temperature | ℃ | -45~85 | -45~85 | -45~85 | ||||||

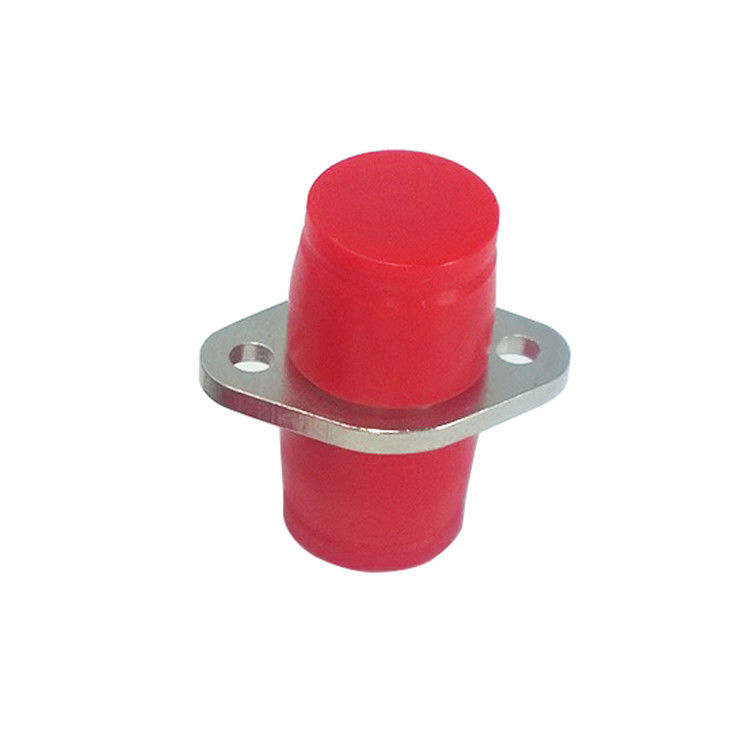

Pictures:
